MarcelineVPQandClaude Opus 4.7 5b9df0596b docs(readme): OLED section rewrite — 11 screens, new button model, web preview screenshots ...

- Bump screen count 10 → 11 in the OLED Display Add-on section to
  reflect the CPU/Clock screen added in v0.6.1.
- Update the cycle order to include CPU/Clock between Diagnostics and
  BT Signal.
- Drop the per-screen ASCII mockups (they were noisy and out of date)
  and link each screen section to a consistent web-preview screenshot

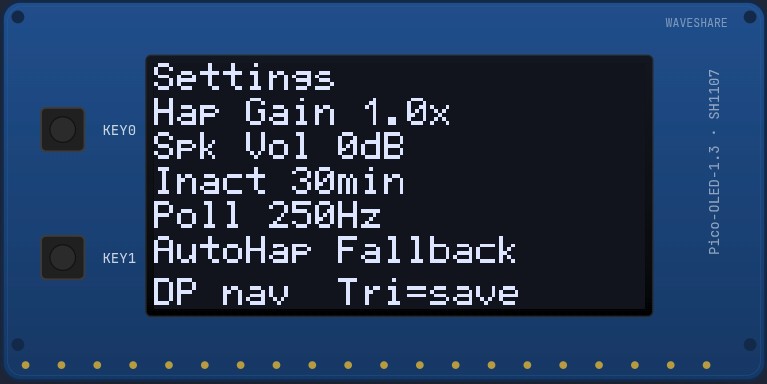

  under assets/oled/. Eleven screenshots, named oled_sc01.jpg through
  oled_sc11.jpg, captured from the OLED Preview tab of the web config
  so every screen looks the same and the chrome/layout matches the
  newly-flashed firmware.
- Rewrite the "KEY1 behavior by screen" table as a single "Button
  reference" table. K0 = next, K1 = back, K1 long-press = brightness
  cycle, K0+K1 hold = reboot. The per-screen state-change actions
  (Triangle / R1 / D-pad) live on the controller now and are
  documented per screen.
- Update Soft-reboot Recovery + the top-level Features bullet to
  reflect KEY0+KEY1 chord replacing KEY0 double-click.
- Update per-screen descriptions: Lightbar uses R1 to cycle mode (not
  K1); Trigger Test uses Triangle to cycle preset (not K1); Settings
  text updated to mention the new D-pad cursor behavior on the web
  preview.

Co-Authored-By: Claude Opus 4.7 (1M context) <noreply@anthropic.com>

2026-05-18 22:11:16 -06:00
